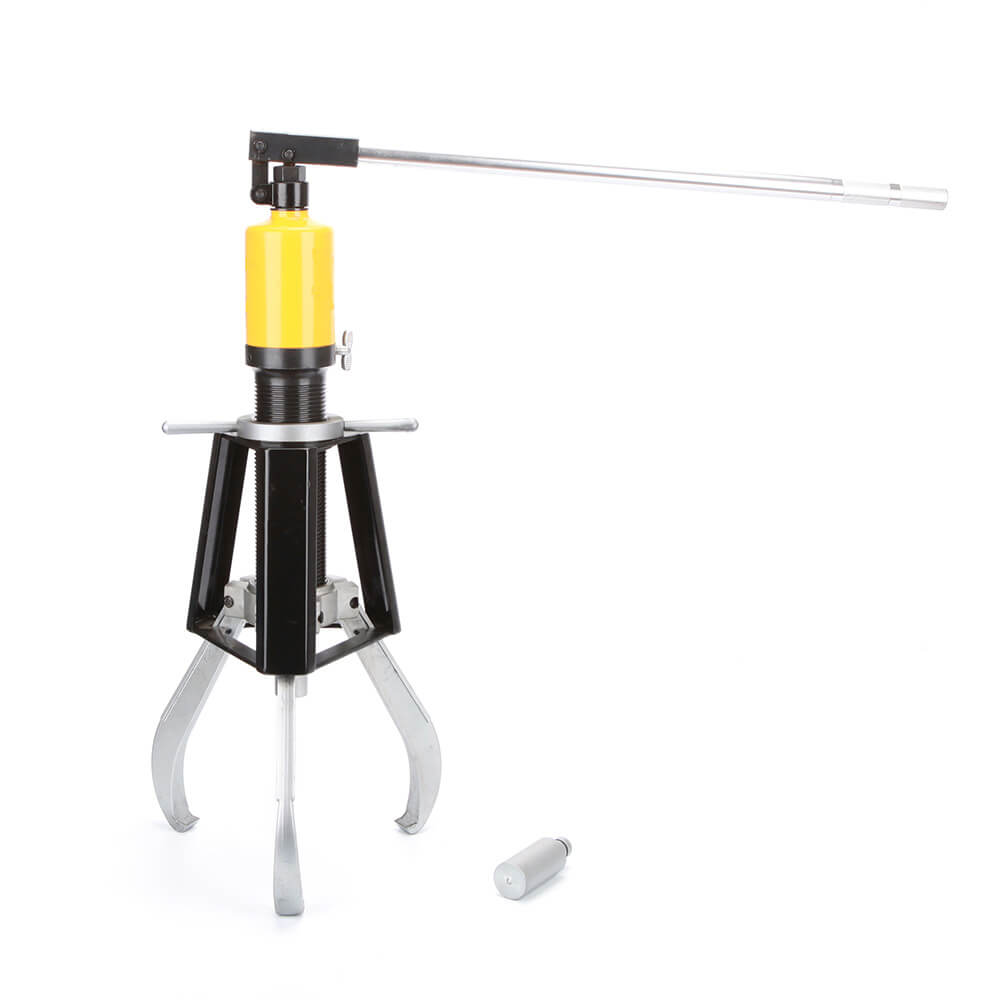

Self-Contained Hydraulic Grip Pullers
- Gear pullers are widely used to remove gears, bushings, pulleys, etc.
- Hydraulic output saves time and effort.
- Can be operated horizontally and vertically
- Can used with Two claws or three claws
- The Jaws and frame are are forged from high-strength alloy steel, which is strong and durable without deformation
- Quality exceeds industry average
- Safety cage jaws clamp the subject and adjust the claw force automatically
Specifications
| Model | Output | Spread | Max Reach | Ram stroke | Weight | Packing size |
| (Ton) | (mm) | (mm) | (mm) | (Kg) | (cm) | |
| HHL-5B | 5 | 20-200 | 160 | 60 | 8 | 42×29×9 |
| HHL-10B | 10 | 20-300 | 210 | 80 | 11 | 43×33×11 |
| HHL-15B | 15 | 20-360 | 240 | 100 | 19 | 44×35×13 |
